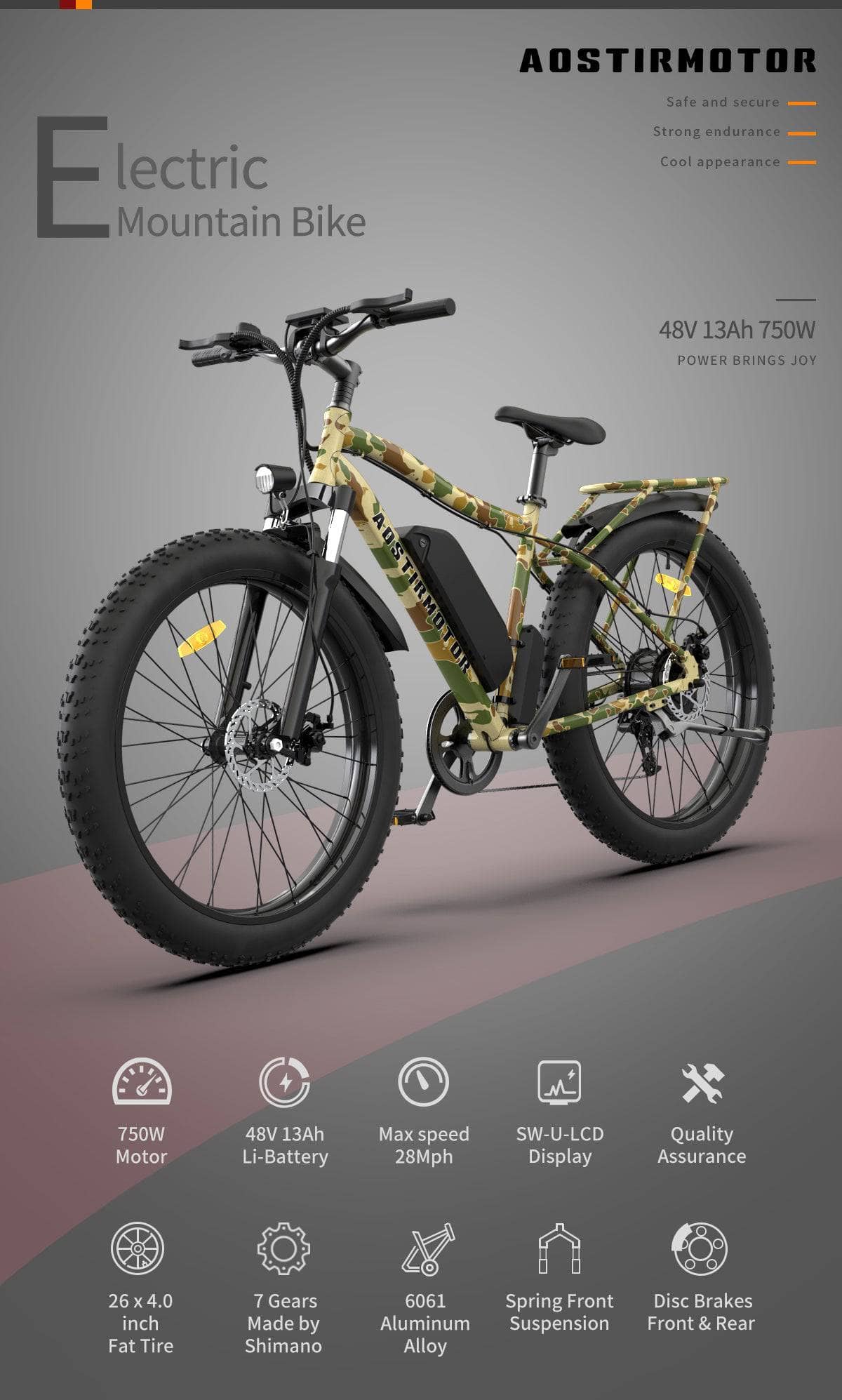

AOSTIRMOTOR S07-E Electric Mountain Fat Tire Bicycle 48V 750W

Size Guide
10 items left

DESCRIPTION:

  • The Aostirmotor 26" S07-E Fat Tire Commuting Electric Bike is a daily, well-rounded electric bicycle that strikes a balance between comfort, utility, and performance, capped off with eye-catching aesthetics. With the factory rear rack, fenders, and front suspension, you will be able to climb slopes easily and in style and comfort. It is great for commuting, hunting, and group trips because it is easy to use and has useful features.

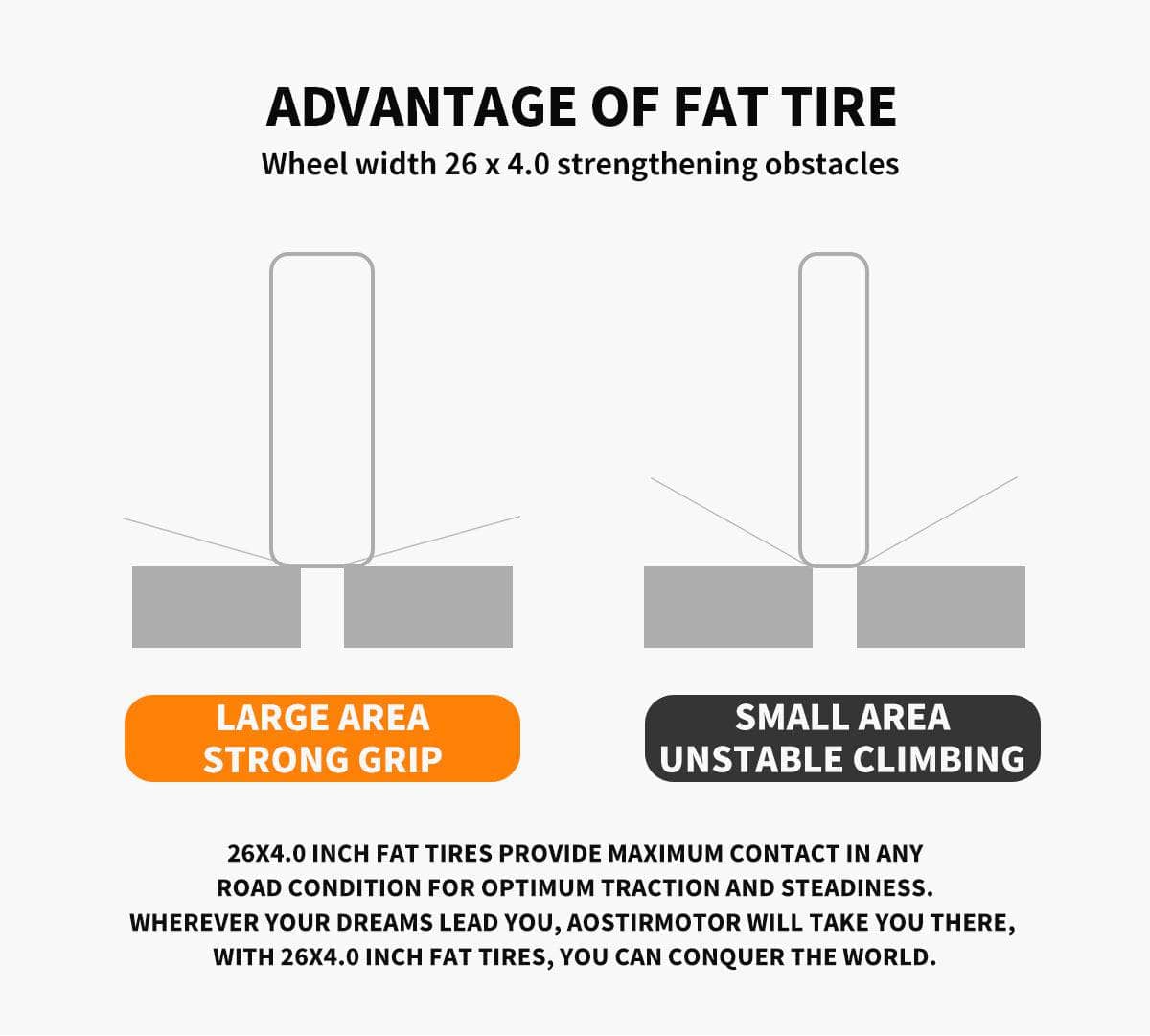

  • At the same time, the S07-E adopts fat tire technology and the 26*4.0 inch fat tires can provide maximum contact in any road conditions to achieve the best traction and stability.

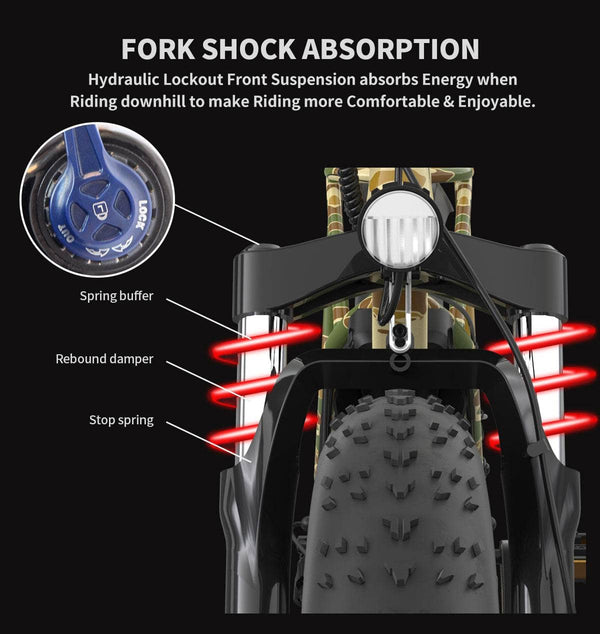

  • Compared with the hard fork, the fork shock absorption has better shock absorption effect, hydraulically locking front suspension absorbs energy on descents for a more enjoyable ride.

SPECIFICATIONS:

System Components Technical Parameters

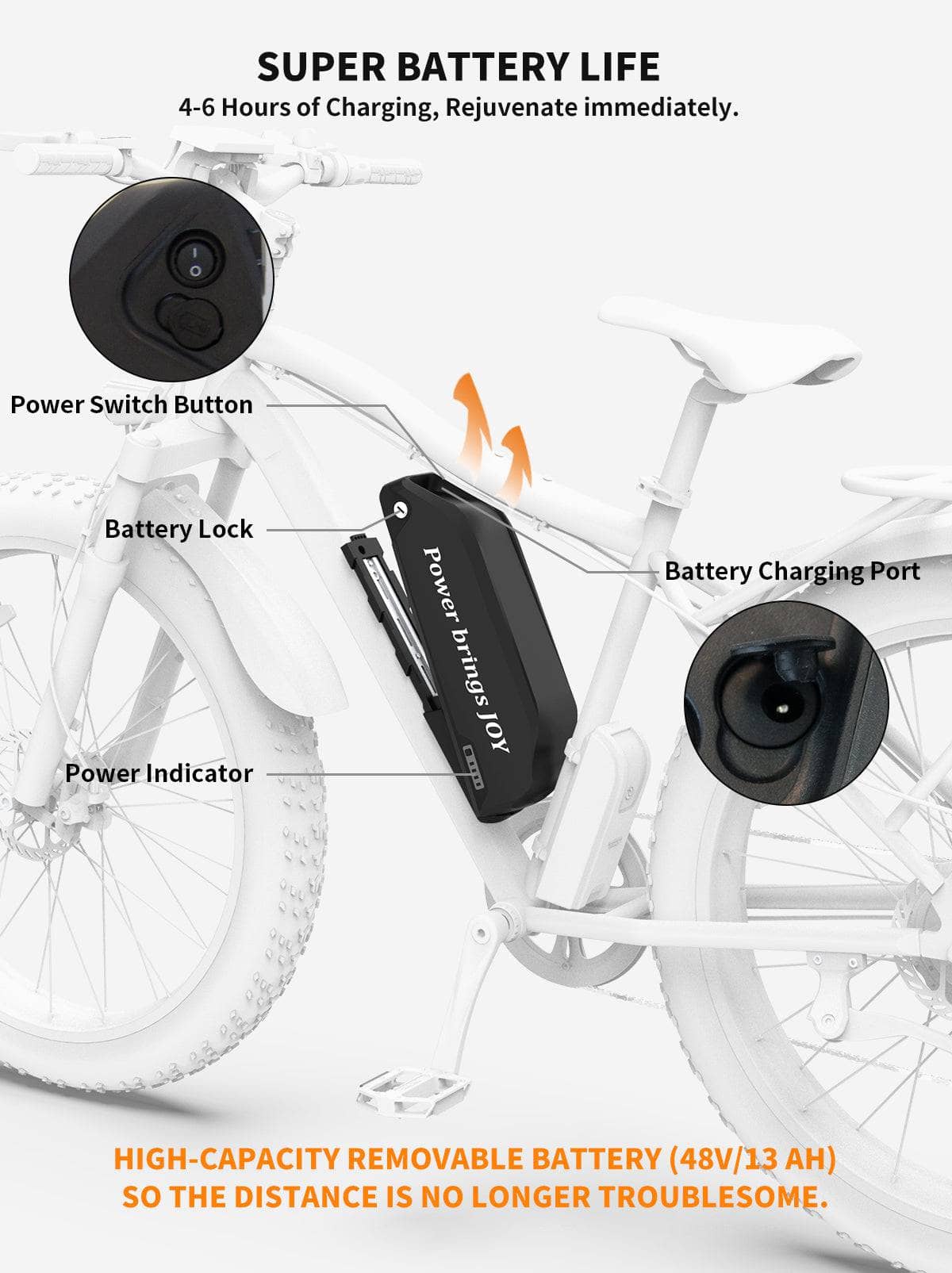

Power System Battery 48V 13Ah lithium battery
Motor 750W Motor    (Brand: TRUCK, Refer to Bafang Quality)
Controller 48V 22A
Charger 110-220V(US/Europe)

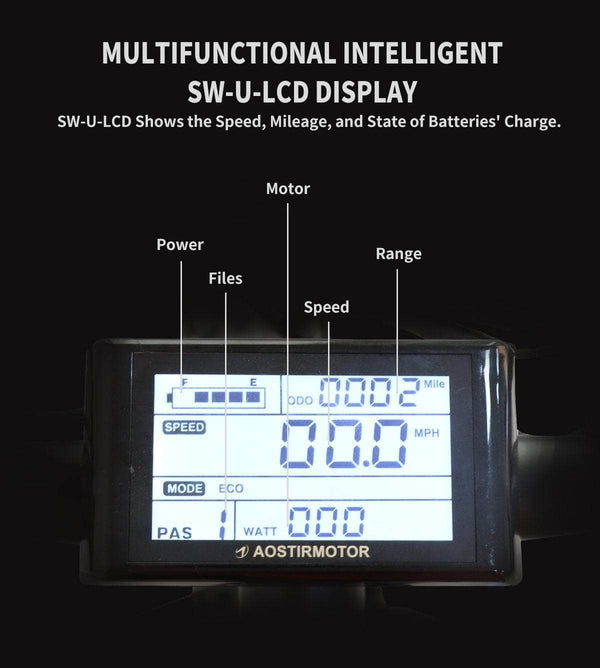

Display SW-U-LCD
Turn-Handle Rotary
Power sensor PAS intelligent pedal assistant system
Charge Time 4-6 hours   (Recharge regularly to extend the life of battery)
Structure Sytem Fork ZOOM/MOZO
Frame 6061 Aluminum Alloy
Handlebar 31.8*660mm
Stem 28.6*31.8*110mm
Rear Rack With
Brake System Brake F/R Mechanical Brake (With 4pcs Brake Pads)
Disc Brake Front 180 & Rear 160
Brake lever Universal
Wheel system Rim form Spoke wheel
Rim Material Aluminum alloy
Tire 26x4.0 inch Fat Tire

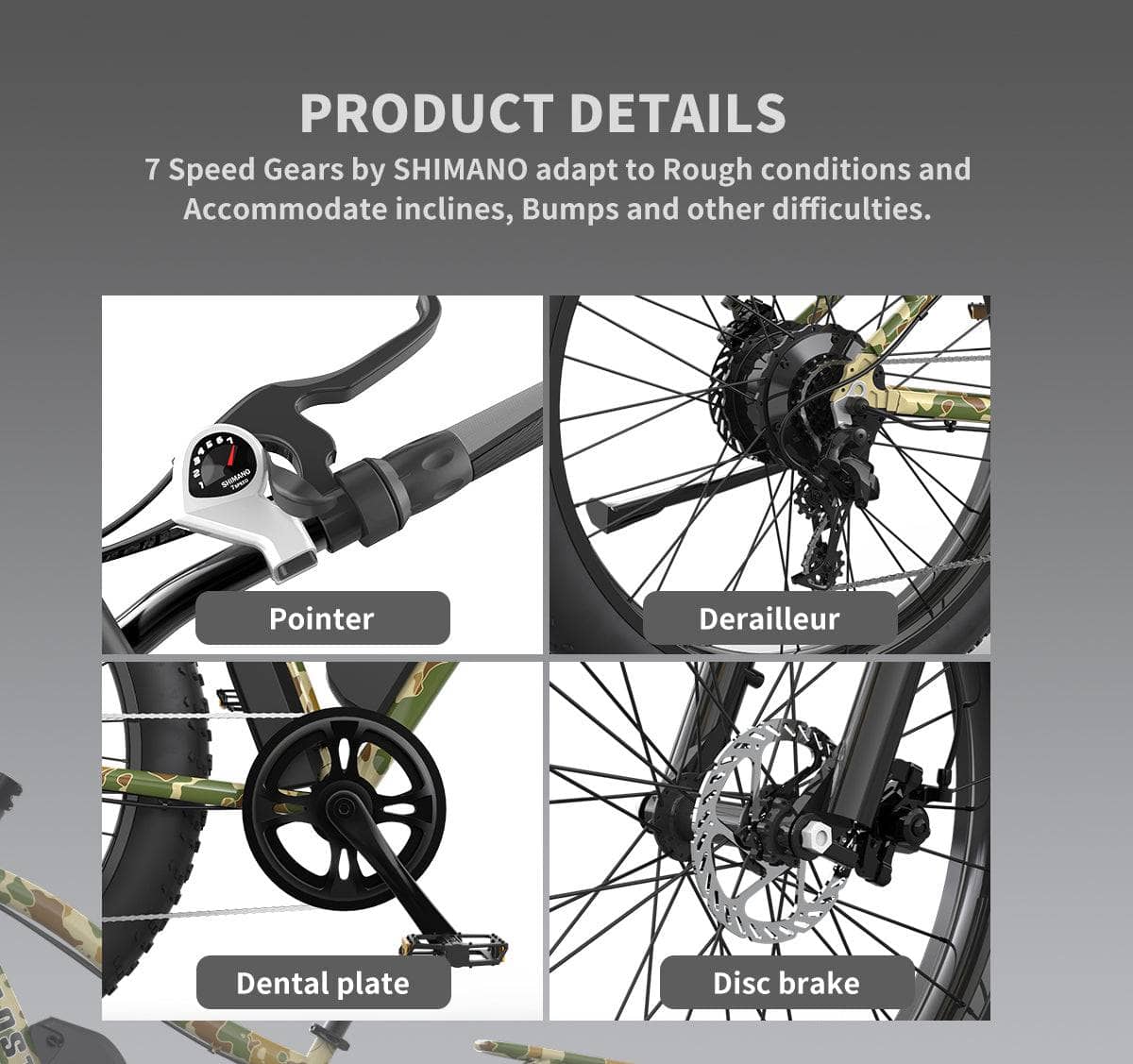

Speed System Gear Shift Lever 7 Speed Dial SHIMANO/Sunrace
Derailleur 7 Speed SHIMANO/Sunrace
Throttle With
Shock absorption System Front suspension Fork shock absorption
Rear suspension NO
Structure shock absorption Lightweight Aluminum Alloy Frame
Other parts Saddle City type
AL6061 T4T6
27.2*250mm
Tube Clamp D1=30mm  D2=38mm
Light With Front light
Pedal Universal
Footrest Universal
Fender With

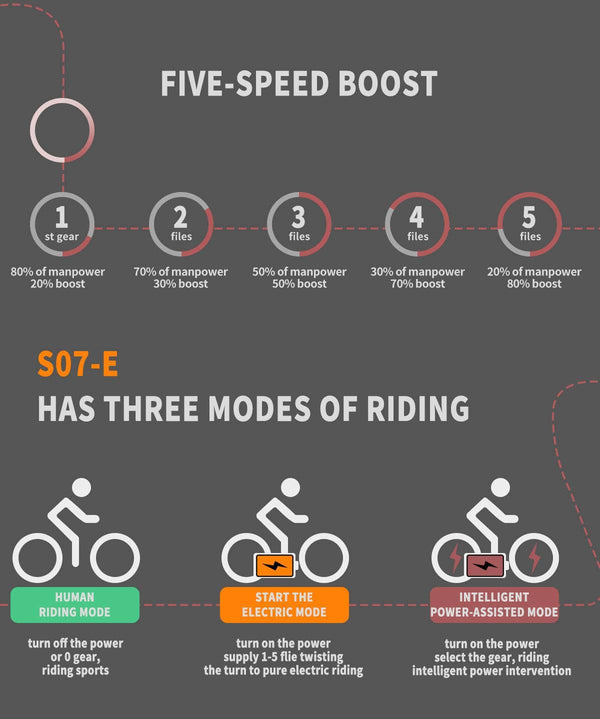

Performance Riding mode Pedal Mode / Boost Mode / Power Mode
Range Distance 25-35 km (Pure Power mode)
Max Speed 45 km/h
Product Parameter Color Black / Camouflage / White
Net Weight 33kg
Gross Weight 38kg
Product Size 192*112cm
Package Size 158*28*85cm
Saddle Height 88-100cm
Weight Capacity 300 LB

ASSEMBLY:

Some assembly required, ships 90% assembled. Bicycle is easy to assemble with basic bicycle knowledge.  Assembly instructions available here

WARRANTY:

1 Year Warranty - 1 Year Battery Warranty
Learn more about our Warranty Policy.

RETURNS:

If you wish to return your purchased item, you may do so within 30 days of delivery. Learn more about our Return Policy.
